The sine wave inverter is especially designed and produced for the enterprises in electrical power system and post and telecommunication industries according to their actual requirements under the condition of not only considering the spatial installation size and the automation and networking requirements for the inverter management in IT age, but also considering the influence of the noise on the personnel in offices or in machine rooms.

The inverter of this series employs advanced SPWM and CPU control technology to realize precise control, isolated input and output, output soft start, safety, and high efficiency, good reliability and strong impact resistance to an inductive load. Not only with small volume, lightweight, beautiful appearance, convenient installation and maintenance, simple operation, low noise, low backward noise and no pollution, but also with the function of real-time data collection and multi-path remote communication, the products of this series can provide convenience for many system users to implement network management and remote control. Meanwhile, such inverter is not only applicable to the communication industry but also applicable to other occasions with high requirements for power supply quality, thus becoming the ideal selection of the power supply for office automation.

FEATURE

ØTrue sine wave output (T.H.D < 3%); ØLarge 128*64 digital LCD display data information，4 led display working; ØStandard 19” rack-Mount case; Ø5 Routes Dry contact for the system (DC input fault, AC input fault, overload information, by-pass information, and output fault); ØRS232 and RS485 & Optional SNMP communication Port; ØPower-on self-test, Soft output start; ØAuto switch function: DC to AC, AC bypass, less than 5ms; ØBy-pass AC110V input filtering; ØReal-time monitoring of the system operating status; ØAudible and visual alarm; ØRecord the historical alarm message and can be queried; ØStart auto restart while Ac or Dc is recovering; ØAutomatic start temperature control fan; ØBuild-in voltage regulator Stabilize AC voltage; ØMaintenance bypass/DC available; ØProtection: Short load protection, overload protection, battery over/under voltage protection, over current, over temperature; ØUnattended operation: the system switches automatically to provide AC power to the load between the DC input and AC input;
Pure Sine Wave Output Voltage This Type Inverter Application With Advanced PWM+SPWM Technology, The Pure Sine Wave Output With Stable Frequency And Voltage, Filtered Noise And Low Distortion Factor.		Advanced DC-AC Electrical Isolation Technology The Inverter With The Advanced DC-AC Electric Isolation Technology Can Really Implement The Completely Electric Isolation of DC And AC In All Circuits		Advance Refleoted Noise Suppression Technology This Product Does Not Mutually Intervene With The Communication Equipment Sharing The DC Cabinet.
Two Working Model Mains Priority, In Case of Mains Fault, The Inverter Power Supply Automatically Switches To The Inverter Output.DC Priority, In Case of Battery Fault, The Inverter Power Supply Automatically Switches To The Bypass Output.		LCD+LED Real-Time Display LED Display，Support RS232 & RS485 And SNMP Interface，Real-time Display And Remote Monitoring of Machine Working Status. Voltage, Current, Frequency, Capacity Rate, Temperature, Alarm Message, etc		Multiple Protection Function DC Input Inverse Connection Prevention, And DC Input Buffering Protection And Other Comprehensive Protection Measures For Overvoltage, Overload, Short Circuit, Over-Temperature, And Inverter Fault.

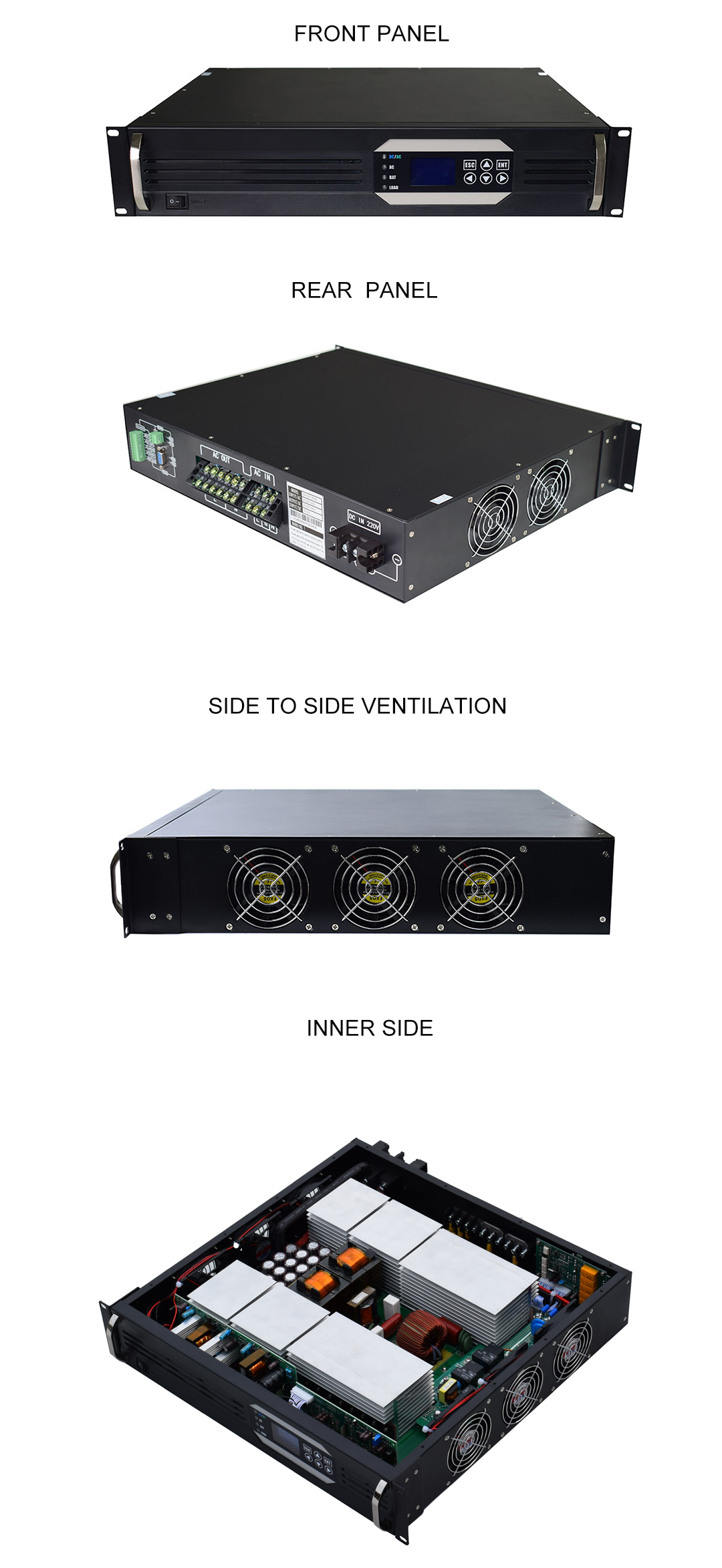

PRODUCT DISPLAY

APPLICATION

PD家用逆变器连接图示

1. Telecom station/base/ Cable Equipment	7.City WIFI device	13. Fire Alarm Systems
2. Communication Station	8. Emergency communication car	14. power utility System Control /field
3. Computer data center	9. Railway & metro	15. power plant/station
4. SCADA Networks and Data Equipment	10. Distributed Antenna Systems	16.Power monitoring system
5. Radio Base stations/ Cell Sites	11. Marine & offshore	17.Solar power system
6. Monitoring center room	12. Building Management Systems	18.Wind energy system

ØTrue sine wave output (T.H.D < 3%);

ØLarge 128*64 digital LCD display data information，4 led display working;

ØStandard 19” rack-Mount case;

Ø5 Routes Dry contact for the system (DC input fault, AC input fault, overload information, by-pass information, and output fault);

ØRS232 and RS485 & Optional SNMP communication Port;

ØPower-on self-test, Soft output start;

ØAuto switch function: DC to AC, AC bypass, less than 5ms;

ØBy-pass AC110V input filtering;

ØReal-time monitoring of the system operating status;

ØAudible and visual alarm;

ØRecord the historical alarm message and can be queried;

ØStart auto restart while Ac or Dc is recovering;

ØAutomatic start temperature control fan;

ØBuild-in voltage regulator Stabilize AC voltage;

ØMaintenance bypass/DC available;

ØProtection: Short load protection, overload protection, battery over/under voltage protection, over current, over temperature;

ØUnattended operation: the system switches automatically to provide AC power to the load between the DC input and AC input;

APPLICATION

PD家用逆变器连接图示

1. Telecom station/base/ Cable Equipment	7.City WIFI device	13. Fire Alarm Systems
2. Communication Station	8. Emergency communication car	14. power utility System Control /field
3. Computer data center	9. Railway & metro	15. power plant/station
4. SCADA Networks and Data Equipment	10. Distributed Antenna Systems	16.Power monitoring system
5. Radio Base stations/ Cell Sites	11. Marine & offshore	17.Solar power system
6. Monitoring center room	12. Building Management Systems	18.Wind energy system
